Revit Hatch Patterns - Brick Pavers Package

This package contains 21 brick paver hatch patterns that you can use to create filled regions or surface patterns in Revit.

Think of all the time you’ll save from having to create these hatch patterns yourself!

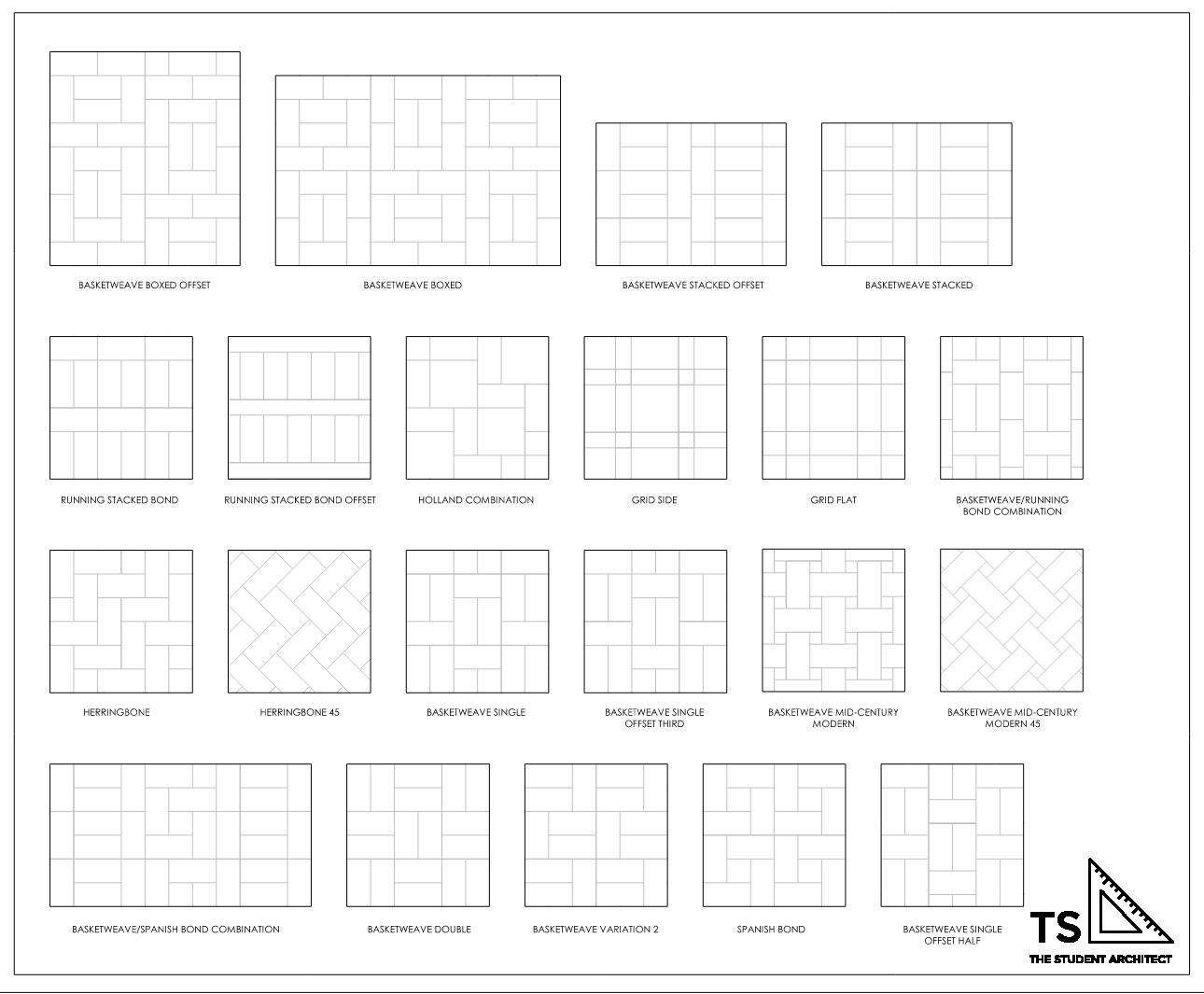

List of hatch patterns includes:
  • Basketweave Boxed
  • Basketweave Boxed Offset
  • Basketweave Double
  • Basketweave Mid-Century Modern
  • Basketweave Mid-Century Modern 45
  • Basketweave Running Bond Combo
  • Basketweave Single
  • Basketweave Single Offset Half
  • Basketweave Single Offset Third
  • Basketweave Spanish Bond Combo
  • Basketweave Stacked
  • Basketweave Stacked Offset
  • Basketweave Variation
  • Herringbone
  • Herringbone 45
  • Holland Combination
  • Spanish Bond
  • Running + Stack Bond
  • Running + Stacked Bond Offset
  • Grid Flat
  • Grid Side
​

Included in the package:
  • 21 .PAT Files
  • PDF showing each hatch pattern and name
  • Bonus resources
These .PAT files are model patterns (not draft patterns). This means lines within the patterns can be selected, dimensioned, shifted, rotated, etc., and will scale with your views.

You can use these hatches with any version of Revit.


Watch the video below to learn what to do after you make a purchase.




Get the
Brick Paver Revit Hatch Patterns Package
for $9

Buy Now




Disclaimers:
All sales are final. There are no refunds on digital products.

Commercial Use License:
By purchasing this product, you are granted a non-exclusive, non-transferable commercial license.

Permitted Uses:
  • Use in unlimited personal and professional projects.
  • Modify or adapt the files to suit specific project requirements.
Prohibited Uses:
  • Reselling, sharing, or redistributing the original or modified files.
  • Including the files in any asset library, template collection, or product for resale or free distribution.
  • Claiming the files as your own original work.
See more on Terms here.
